A rotary rack of an interior design that fits your room. Davic might be very useful if you want to arrange alot of comic magazines.video,DVD and CD.
How to assemble 3 layers and 5 layers devic. 5 layers of devic is introduce here as an example.
Confirmation of contents first.
Package containing the devic.
Open the package.
If all the parts are taken out from the package, base level of the devic is confirmed first. A revolving plate is incorporated in the bottom of the devic that enables it to turn 360 degrees. .
Turn smoothly.
A stopper fixing disk can be considered to upset it.
It is understood that small wheels are hidden at the base when it is put back at the surface of the devic.
Five pieces of shelf boards are confirmed next.
Top portion.
Five pieces each for small and large size parting strip is prepared. This is a large size parting strip.
Small size parting strip.
20 pieces of sliding stopper is attached so that DVD/CD do not fall down.
Enlargement picture of a sliding stopper.
24 pieces of top and bottom stopper fixing a shelf board and the parting strip.
Assembling begins when all the parts of the devic are confirmed. Base level is prepared first.
Attached a large size parting strip in the ditch of the base level.
Examine carefully if it looks good.
Small size parting strip is set to the large size strip. Each ditch are put together.
A shelf board and a parting strip are fixed with four pieces of stopper each at the top and at the bottom. Be sure not to make a mistake in putting the top and bottom stopper.
This is the view of the first finished layer.
A shelf board is picked up on a parting strip, and the work is repeated in the same way the first layer was assembled.
A slide stopper is put back to back with each other.
It is moved while pushing a stopper knob to ditch.

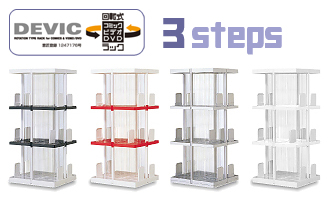

DEVIC 3stairs
product size
W353×D313×H760mm
material
( Top boad・Shelf board・Base・ Rotation board)
hi impact styrol
(Partition board・large・amall) styrol
(Slide type stopper・Upper and lower stopper)
polypropylene
(Rotation scene)nylon
(Slipping stop cap)polyethylene
(Screw)Steel

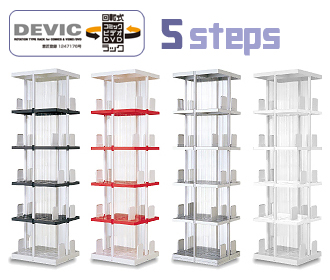

DEVIC 5stairs
product size
W353×D313×H1240mm
material
( Top boad・Shelf board・Base・ Rotation board)
hi impact styrol
(Partition board・large・amall) styrol
(Slide type stopper・Upper and lower stopper)
polypropylene
(Rotation scene)nylon
(Slipping stop cap)polyethylene
(Screw)Steel
